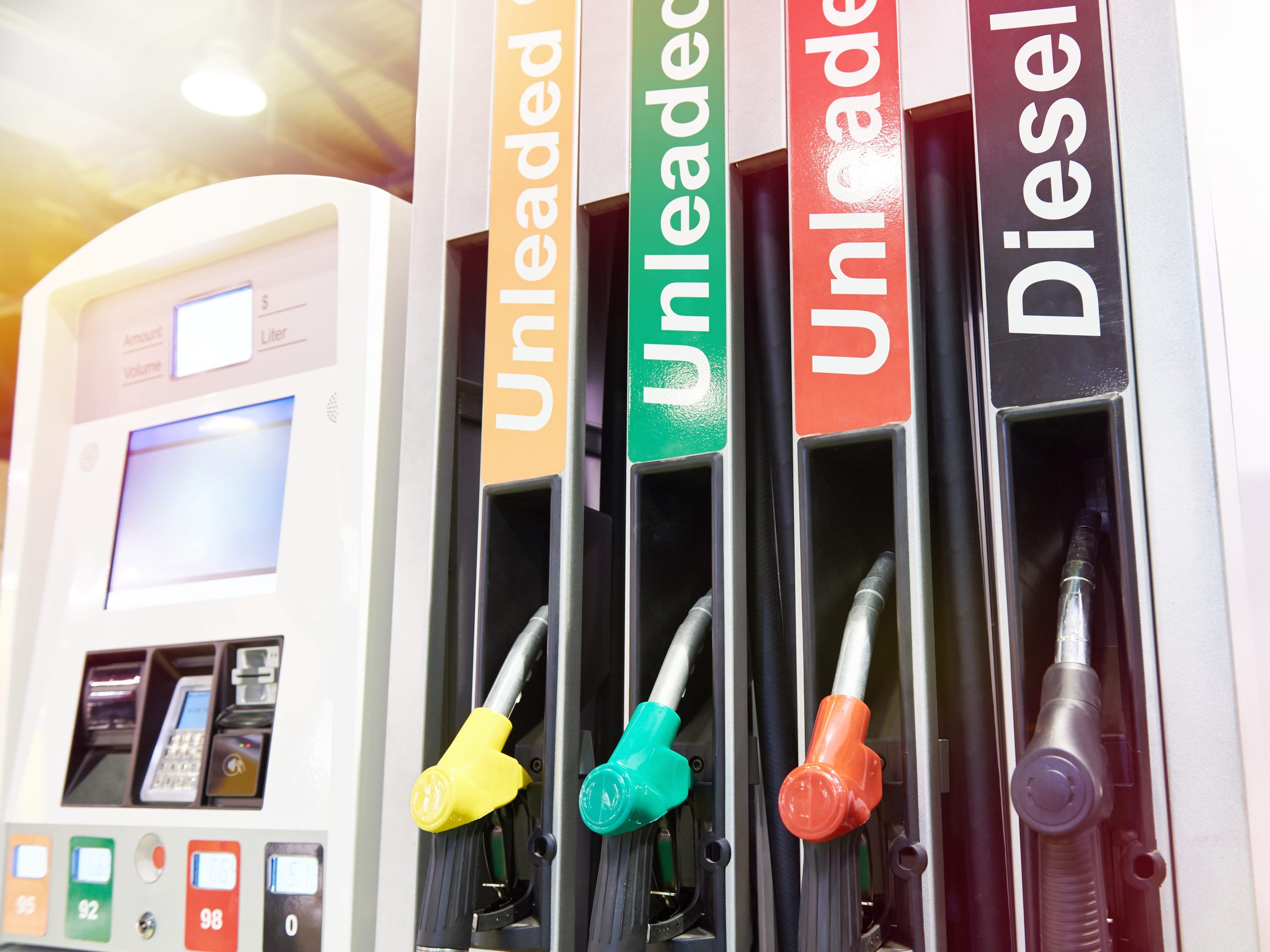

Petrol Pump Display Illumination

We developed a backlighting solution for even illumination of LCD petrol pump displays.
Tight LED colour control
High volume production supplied in vacuum formed tray
Prototyping and testing to check compatibility with customers application

The Challenge

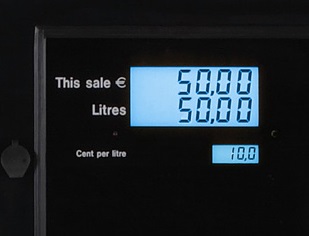

Manufacture uniformly illuminated backlights in 2 sizes to be used together for the illumination of LCD petrol pump displays
Very low-cost target
Even illumination
Restricted space below LCD
Assembly restrictions
Colour consistency requirements

The Solution

Optical grade plastic backlight with through-hole tombstone LED
Even illumination
Reflective rear and edge coating applied
Chip selection for tight LED colour control

The Result

A backlight solution that delivers on price and gives even illumination on petrol pump displays throughout the world.Manufactured and supplied in volumes of up to 10,000 pieces.
